Description:

Whether you’re upgrading from an older machine or are looking to add another zero-turn to your trailer, the new Radius S-Series delivers an unbeatable combination of durability, operator comfort, performance, and value. 60-inch UltraCut Series 3 side-discharge cutting decks, each equipped with our exclusive flow-control baffles for a superior cut quality. An adjustable full-suspension operator seat and isolated footrest provide superior all-day mowing comfort.

Radius S-Series models are also designed for maximum durability with reduced maintenance. With just two grease points to lubricate annually, low-maintenance Hydro-Gear integrated transmissions, and reliable Kawasaki commercial engines, Radius S-Series models are built for the long haul.

Looking for even more performance, power, and durability? Check out the new Radius X-Series zero-turn mower.

Specification:

General Information

UPC: 193308225180
Starter: Electric

Steering Control

Type: Hydraulically dampened twin levers
Adjustments: Fore and aft; 2-position height adjustment

Tires

Front Caster Tires: 13 x 6.5-6, smooth tread, pneumatic with caged roller bearings (126-3289)
Drive Tires: 23 x 10.5-12 Super Turf TL

Brakes

Parking Brake: Lever-actuated pawl brake

Frame

Type: Unibody, welded
Material: Heavy-duty 2" X 3" rectangular tubular steel

Blade Spindles

Type: No maintenance, sealed, and non-greasable
Specifications: 7.30" diameter cutter housing, 17mm (.67") diameter spindle shaft, hex blade drive

Electrical System

Battery: 12-volt
Alternator: 15-amp

Standard Features

Included: Engine hour meter, cup holder, tow hitch, jack receiver

Seat

Type: Deluxe suspension (adjustable spring suspension)
Features: High back, molded foam flip-up armrests, integral safety switch

Transmission

Type: Hydrostatic
Speeds: Infinitely variable
Forward Speed: 0–9.0 mph (14.5 kmph)
Reverse Speed: 0–5.0 mph (8.0 kmph)

Engine

Brand: Kawasaki
Model: FX730V
Displacement: 726 cc
Series: V-Twin
Speed: 3,800 rpm
Fuel System: Carbureted
Engine Spec: FX730V_S26
Air Filter: Cyclonic air cleaner

Fuel System

Capacity: 7-gallon (26.5 L) single fuel tank with single fill location
Type: Gas Carbureted
Indicator: Translucent visual

Drive System

Description: Dual Hydro Gear ZT3100
Components: Hydrostatic transmission with charge pumps, relief valves, and independent, replaceable filters

PTO Engagement

Type: MagStop electromagnetic 125-ft-lb clutch

Drive Wheel Release

Feature: Allows unit movement without engine running

Deck Lift

Type: Standard foot-controlled
Function: Changes cutting height, lifts deck for obstacles or transport

Carb Compliance

Status: No

Safety Package

Features: Operator Presence Controls (OPC), drive system interlock, safety interlock system indicators

ROPS

Type: 2-post foldable
Features: Standard with seat belt and latch

Deck

Style: Floating Deck
Description: Full-floating UltraCut Series 3; side discharge standard, with molded discharge chute and option to bag or mulch
Width: 60"
Construction: 10-gauge high strength alloy top, 7-gauge side skirt
Cutting Heights: 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments
Blade Tip Speed: Approximately 18,500 fpm
Blades: 3 blades at 20.50" length

Dimensions

Width: 72.3 in (183.6 cm)
Height: 69.7 in (177.0 cm)
Length: 80.5 in (204.5 cm)
Curb Weight: 973 lbs (442 kg)

Width	Weight	Height	Length
			0 Inch

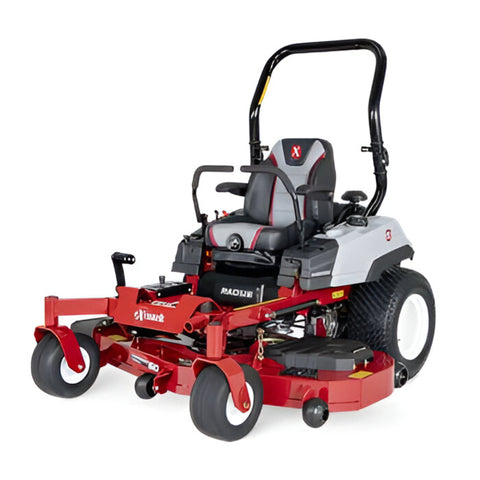

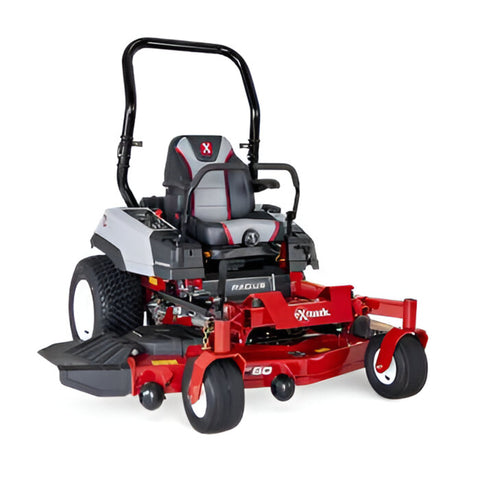

Exmark Radius S-Series 60-inch UltraCut Series 3. side-discharge cutting deck
