Engine

Engine type: Four- stroke, Naturally Aspirated, Direct injection, Water Cooled Diesel Engine

Engine HP [kW] @ RPM: 36.2 (27) @ 2500

Displacement [in3 (cc)]: 125 (2048)

Number of cylinders: 3

Fuel tank [Gal (L)]: 7.7 (29)

Bore & stroke [in]: Bore : 3.5, Stroke : 4.3

Drive Train

Transmission type: Constant mesh on gearshift and synchromesh on F-R shuttle

Number of speeds: 8F / 8R

Clutch: Dry-Single

Max speed (MPH): 12.2

Brakes: Wet Disc

PTO

PTO type: Independent

Rear PTO RPM: 540 @ 2376

Mid PTO RPM: 2000 (Opt.) @ 2526

PTO HP (kW): 27.6 (20.6)

Hydraulics

Type: Open Center

Maximum total flow [GPM (L/min)]: 10.8 (40.7)

Total pump output, main (GPM): 7.5

Total pump output, steering (GPM): 3.3

3-Point hitch: CAT I with Telescoping Stabilizers & Flex Links

3- Point hitch lift capacity @24" aft [lb (kg)]: 1720 (780)

Electrical

Battery: 12 V, 925 CCA

Alternator: 12 V, 90 A

Dimensions & Weight

Overall length [in (mm)]: 123.8 (3144)

Wheelbase [in (mm)]: 73 (1854)

Turning radius [ft (m)]: 8.5 (2.6)

Overall width [in (mm)]: 64 (1626)

Overall height [in (mm)]: 90.2 (2290)

Minimum ground clearance [in (mm)]: 12.2 (310)

Weight [lb (kg)]: 3075 (1395)

Tires

IND [Front/Rear]: 27 x 8.5-15 / 15 x 19.5

Loader

Max lift height (in): 92

Loader lift capacity [lb (kg)]: 1830

Digging depth (in): 3

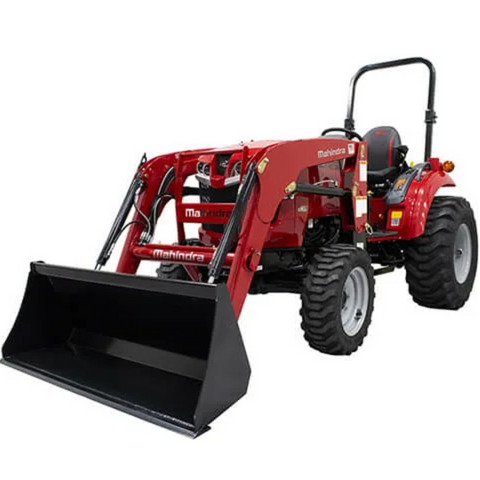

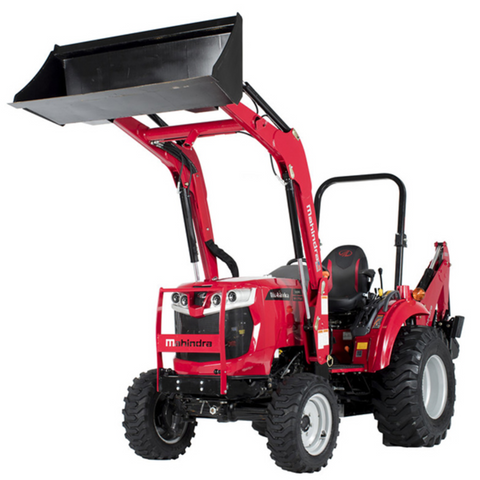

Mahindra 1635 Shuttle w/Ind 16354FSIL
