Engine

Engine type: Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine

Engine HP [kW] @ RPM: 20.1 (15) @ 2900

Displacement [in3 (cc)]: 67.2 (1102)

Number of cylinders: 3

Fuel tank [Gal (L)]: 6.6 (25)

Bore & stroke [in]: Bore : 3, Stroke : 3.2

Cylinders: Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine

Drive Train

Transmission type: HST_ 2 Range

Number of speeds: Infinite

Clutch: N/A

Max speed (MPH): 7.3

Brakes: Single pedal

PTO

PTO type: Independent Wet Clutch

Rear PTO RPM: 540 @ 2837

Mid PTO RPM: 2500 @ 2837

PTO HP (kW): 13.9 (10.4)

Hydraulics

Type: Open center, full-live hydraulic with Position Control

Maximum total flow [GPM (L/min)]: 11.2

Total pump output, main (GPM): 7.6 (28.7)

Total pump output, steering (GPM): 3.8

3-Point hitch: CAT 1 with check chains

3- Point hitch lift capacity @24" aft [lb (kg)]: 771 (350)

Electrical

Battery: 12.6V, 650 CCA

Alternator: 12V, 55A

Dimensions & Weight

Overall length [in (mm)]: 100.4 (2550)

Wheelbase [in (mm)]: 55.1 (1400)

Turning radius [ft (m)]: 7.2 (2.2)

Overall width [in (mm)]: 46.3 (1177)

Overall height [in (mm)]: OS 86.6 (2200) Cab 80.5 (2044)

Minimum ground clearance [in (mm)]: 6.6 (169)

Weight [lb (kg)]: 1620 (735)

Tires

IND [Front/Rear]: 18×8.5-10 / 26×12-12

Loader

Max lift height (in): 68 / 1721

Loader lift capacity [lb (kg)]: 794 (360)

Digging depth (in): 3 (80)

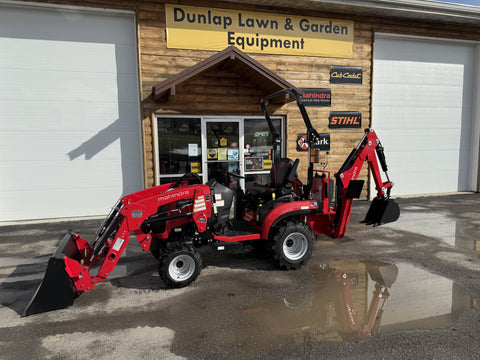

Mahindra 11204FHILB
