Engine:

Engine type Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine

Engine HP [kW] @ RPM 45 @ 2300

Displacement [in3 (cc)] 166.2 (2723)

Number of cylinders 4

Fuel tank [Gal (L)] 17.1

Bore & stroke [in] Bore: 3.78, Stroke : 4.8

Drive Train:

Transmission type Full Synchromesh with forward/reverse sychro shuttle & constant mesh range

Number of speeds 12F / 12R

Clutch Dual Dry with Cerametallic Lining

Max speed (mph) 17.9

Brakes Fully-enclosed, 7-in Diameter, Dry Disc

PTO:

PTO type Independent

Rear PTO RPM 540 @ 2300 / 540E 1725

PTO HP (kW) 38 @ 2300

Hydraulics:

Type Open center; Adjustable lower links with stabilizer

Maximum total flow [GPM (L/min)] 13.3

Total pump output, main (GPM) 8.71

Total pump output, steering (GPM) 4.62

3-Point hitch CAT I & II w/ Telescopic Stabilizers & Flex Links

3- Point hitch lift capacity @24" aft [lb (kg)] 3748

Electrical:

Battery 12-volt; 925 CCA

Alternator 12-volt; 55 amp

Dimensions & Weight:

Overall length [in (mm)] 136.6 (3470)

Wheelbase [in (mm)] 77.9 (1979)

Turning radius [ft (m)] 10.8 (3.29)

Overall width [in (mm)] 74.8 (1900)

Overall height [in (mm)] 60.6 (1540)

Minimum ground clearance [in (mm)] 15.2 (385)

Weight [lb (kg)] 5390

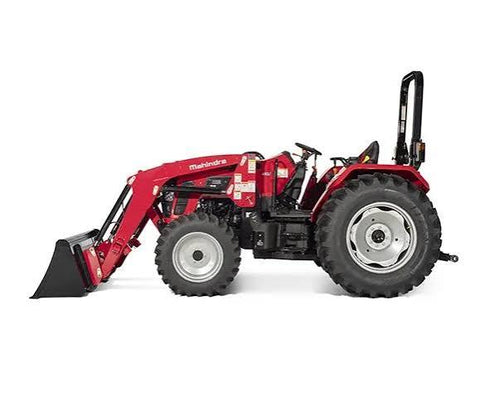

MAH 51454FSAL
