Engine

Engine type: Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine

Engine HP [kW] @ RPM: 25.3 (18.9) @ 2700

Displacement [in3 (cc)]: 80.4 (1318)

Number of cylinders: 3

Fuel tank [Gal (L)]: 5.8 (22)

Bore & stroke [in]: Bore : 3.7, Stroke: 3.62

Drive Train

Transmission type: HST – 3 range

Number of speeds: Infinite

Clutch: N/A

Max speed (MPH): 11.2

Brakes: Two Pedal

PTO

PTO type: Live

Rear PTO RPM: 540 @ 2376

Mid PTO RPM: 2500 @ 2500

PTO HP (kW): 18.8 (14.0)

Hydraulics

Type: Open center,full-live hydraulic with Position Control

Maximum total flow [GPM (L/min)]: 11.2

Total pump output, main (GPM): 6.3

Total pump output, steering (GPM): 5

3-Point hitch: CAT I with Telescoping stabilizers

3- Point hitch lift capacity @24" aft [lb (kg)]: 1760

Electrical

Battery: 12 volt, 650 CCA

Alternator: 12 volt, 55 A

Dimensions & Weight

Overall length [in (mm)]: 112.7 (2863)

Wheelbase [in (mm)]: 61.4 (1560)

Turning radius [ft (m)]: 8.2 (2.5)

Overall width [in (mm)]: 54.4 (1383)

Overall height [in (mm)]: 84.4 (2145)

Minimum ground clearance [in (mm)]: 13.4 (340)

Weight [lb (kg)]: 2607

Tires

IND [Front/Rear]: 8.5×14 / 12.4-16

Loader

Max lift height (in): 77 / 1950

Loader lift capacity [lb (kg)]: 1477 (630)

Digging depth (in): 3 (80)

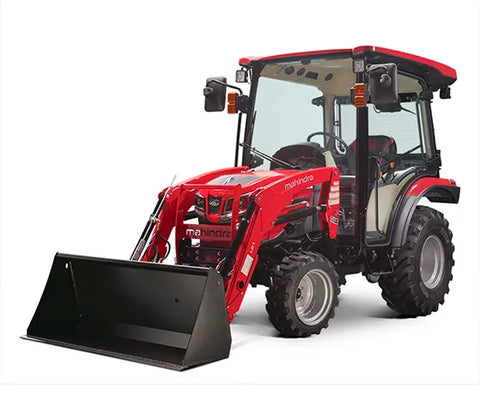

MAH 21264CHIL
