Engine:

Engine type Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine

Engine HP [kW] @ RPM 38.7 (28.9) @ 2400

Displacement [in3 (cc)] 166.7 (2732)

Number of cylinders 4

Fuel tank [Gal (L)] 7.7 (29)

Bore & stroke [in] Bore : 3.5, Stroke : 4.3

Drive Train:

Transmission type HST -3 Ranges

Number of speeds Infinite

Clutch Dry-Single

Max speed (mph) 14.8

Brakes Wet Disc

PTO:

PTO type Live with o/r clutch

Rear PTO RPM 540 @ 2376

Mid PTO RPM 2000 (Opt.) @ 2526

PTO HP (kW) 27.7 (20.6)

Hydraulics:

Type Open center

Maximum total flow [GPM (L/min)] 11.4 (41.8)

Total pump output, main (GPM) 7.7

Total pump output, steering (GPM) 3.4

3-Point hitch CAT I with Telescoping Stabilizers & Flex Links

3- Point hitch lift capacity @24" aft [lb (kg)] 1720 (780)

Electrical:

Battery 12 V, 540 CCA

Alternator 12 V, 50 A

Dimensions & Weight:

Overall length [in (mm)] 127.8 (3245)

Wheelbase [in (mm)] 76.9 (1954)

Turning radius [ft (m)] 9.2 (2.8)

Overall width [in (mm)] 62 (1575)

Overall height [in (mm)] 91.5 (2325)

Minimum ground clearance [in (mm)] 12.8 (325)

Weight [lb (kg)] 3175 (1440)

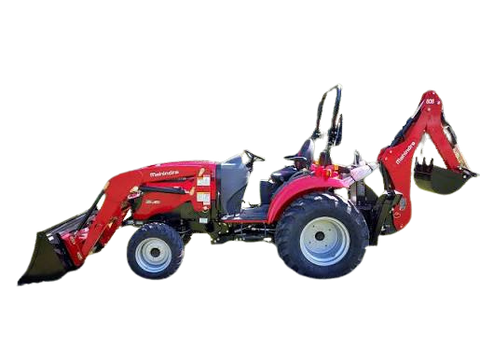

MAH 16404FHRFILB
