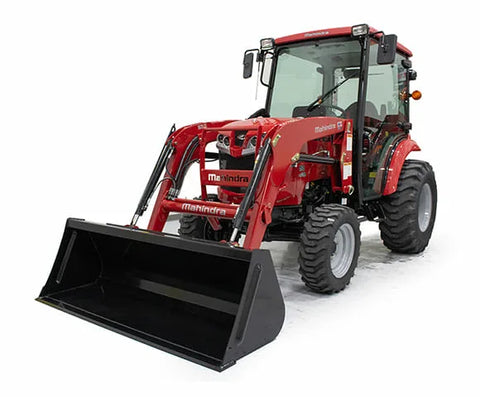

SKID STEER FRONT SINGLE SPEAR Tractor

Engine

Engine type: Four- stroke, Naturally Aspirated, Direct injection, Water Cooled Diesel Engine

Engine HP [kW] @ RPM: 38.7 (28.9) @ 2400

Displacement [in3 (cc)]: 166.7 (2732)

Number of cylinders: 4

Fuel tank [Gal (L)]: 7.7 (29)

Bore & stroke [in]: Bore : 3.5, Stroke : 4.3

Drive Train

Transmission type: HST-3 Ranges

Number of speeds: Infinite

Clutch: Dry-Single

Max speed (MPH): 14.8

Brakes: Wet Disc

PTO

PTO type: Live with o/r clutch

Rear PTO RPM: 540 @ 2376

Mid PTO RPM: 2000 (Opt.) @ 2526

PTO HP (kW): 27.7 (20.6)

Hydraulics

Type: Open Center

Maximum total flow [GPM (L/min)]: 11.4 (41.8)

Total pump output, main (GPM): 7.7

Total pump output, steering (GPM): 3.4

3-Point hitch: CAT I with Telescoping Stabilizers & Flex Links

3- Point hitch lift capacity @24" aft [lb (kg)]: 1720 (780)

Electrical

Battery: 12 V, 925 CCA

Alternator: 12 V, 90 A

Dimensions & Weight

Overall length [in (mm)]: 127.8 (3245)

Wheelbase [in (mm)]: 76.9 (1954)

Turning radius [ft (m)]: 9.2 (2.8)

Overall width [in (mm)]: 62 (1575)

Overall height [in (mm)]: 89.4 (2270)

Minimum ground clearance [in (mm)]: 12.8 (325)

Weight [lb (kg)]: 3627 (1645)

Tires

IND [Front/Rear]: 28 x 8.5-15 / 43 X 16 -20

Loader

Max lift height (in): 92

Loader lift capacity [lb (kg)]: 1830

Digging depth (in): 3

MAH 16404CHIL
