Engine:

Engine type Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine

Engine HP [kW] @ RPM 24.8 (18.5) @ 2500

Displacement [in3 (cc)] 80.4 (1318)

Number of cylinders 3

Fuel tank [Gal (L)] 7.1 (27)

Bore & stroke [in] Bore : 3.1, Stroke: 3.6

Drive Train:

Transmission type HST -3 Ranges

Number of speeds Infinite

Clutch Dry-Single

Max speed (mph) 13.3

Brakes Wet Disc

PTO:

PTO type Live

Rear PTO RPM 540 @ 2376

Mid PTO RPM 2000 (Opt.) @ 2526

PTO HP (kW) 19 (14.2)

Hydraulics:

Type Open center

Maximum total flow [GPM (L/min)] 10.8 (40.7)

Total pump output, main (GPM) 7.5

Total pump output, steering (GPM) 3.3

3-Point hitch CAT I with Telescoping Stabilizers

3- Point hitch lift capacity @24" aft [lb (kg)] 1720 (780)

Electrical:

Battery 12 V, 540 CCA

Alternator 12 V, 50 A

Dimensions & Weight:

Overall length [in (mm)] 121.3 (3080)

Wheelbase [in (mm)] 67.3 (1710)

Turning radius [ft (m)] 7.9 (2.4)

Overall width [in (mm)] 63 (1600)

Overall height [in (mm)] 81.5 (2069)

Minimum ground clearance [in (mm)] 11.4 (290)

Weight [lb (kg)] 2459 (1115)

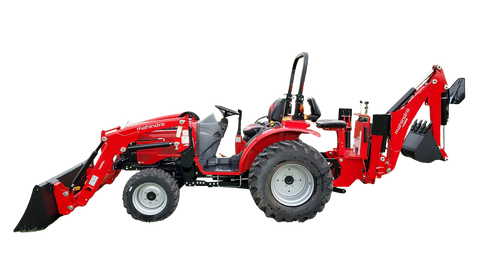

MAH 16264FSRFILB
