DESCRIPTION

Built For All Day, Every Day Performance.

The X-ONE® is built for the full-time commercial landscaper to provide all day, every day performance. It offers a choice of carbureted or fuel-injected engines and a selection of side or rear-discharge decks. The X-ONE sets the standard for commercial zero-turn value.

ENGINE

Engine Manufacturer: Kawasaki FX850
Engine Horsepower: 27
Displacement: 852cc
Cooling: Air Cooled
Engine Warranty: 3 Year Warranty
Air Cleaned: Heavy Duty Canister

DRIVE SYSTEM

Type: Dual Hydrostatic
Transmission: Parker unitized 12cc/rev pump with 15.9ci/rev wheel motors
Fuel Capacity: Duel fuel tanks w/ 12 gal. total capacity
Ground Speed (FWD): Up to 10.5 mph
Parking Brake: Integrated with steering levers
Hydraulic Cooling: Transmission mounted fan

DECK

Cutting Width: 60", 60" Rear Discharge
Cutting Height: 1" to 5.5"
Deck Depth: 5.5"
Deck Lift: Foot Operated
Number of Blades: 3
Blade Length: 20.5"
Blade Tip Speed: 18,800
Spindles: Ductile cast iron with steel shaft and sealed ball bearings
Deck Engagement: Electric PTO Clutch
Deck Material: Fabricated 7 gauge with 7 gauge wrappers
Spindle Mounts: Reinforced 7 ga. stamped disc, Rear Discharge: 10 gauge with 11 gauge doubler
Impact Trim Area: Front of deck: 11 gauge formed channel with rolled edge

CONSTRUCTION

Frame: 1.5" X 3" steel tubing
Front Axel: Fabricated with tapered roller bearings
Front Caster Wheel: Tapered wheel bearings and debris cap
Front Caster Fork: Fabricated 1/2" steel

GENERAL

Seat: I3M Suspension Seat
Cup Holder: Yes

DIMENSIONS

Front Tire (inches): 13 x 6.5-6
Drive Tire (inches): 24 x 12-12
Weight (lbs): 1245, 1305 Rear Discharge
Height (inches): 49, 72.5 w/ ROPS up
Length (inches): 80.2
Width w/ chute up (inches): 62.4, 61.72 Rear Discharge
Tire-to-tire Width (inches): 54.5
Productivity (acres per hour): 6.36

WARRANTY

Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)

DIMENSIONS WITH CATCHER

Catcher Style: 3-bag
Powered / Non-Powered: Powered
Catcher Capacity: 12 bushel
Mower Length w/ Catcher: 111.1"
Mower Width w/ Catcher: 70.9"
Style 2: Catcher Style: BAC-VAC
Style 2: Powered / Non-Powered: Powered
Style 2: Catcher Capacity: 10 bushel
Style 2: Mower Length W/ Catcher: 108.3"
Style 2: Mower Width W/ Catcher: 70.9"

KEY SPECS

Engine Manufacturer: Kawasaki FX850
Engine Horsepower: 27
Transmission: Parker unitized 12cc/rev pump with 15.9ci/rev wheel motors
Fuel Capacity: 11.7 gal.
Ground Speed (Fwd): Up to 10.5 mph
Cutting Width: 60", 60" Rear Discharge
Cutting Height: 1" to 5.5"
Front Tire: 13 x 6.5-6
Drive Tire: 24 x 12-12
Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)

ACCESSORIES

3-Bag Powered Bagger: Easy-on, easy-off blower and hopper assemblies. Holds 12 bushels.
Mesh Side Bagger: Easy-on, easy-off bagger has a 3-bushel capacity.
Steel Side Bagger: Easy-on, easy-off bagger has a 3.5 bushel capacity.
BacVac Bagger: Electric-accuated DFS bagger system. Easy-on, easy-off versatility with a 10-bushel capacity.
MICHELIN® X® TWEEL® TURF CASTER: The MICHELIN® X® TWEEL® TURF Caster replaces the current front tire/wheel assembly on zero turn radius mowers, and offers the same trouble-free benefits.
MICHELIN® X® TWEEL® TURF: The MICHELIN® X® TWEEL® TURF airless radial tire is designed to help zero turn radius mowers achieve excellent cutting results and outstanding rider comfort, while eliminating downtime caused by flat tires and unseated beads. 24" x 12" tire. 60" and 72" X-ONE models, 60", 66" and 72" Super Z models only.
Semi-Pneumatic Front Tires: Flat-free front tire option.
Mulch Kit: Recycle clippings back into the soil and reclaim nutrients for your lawn.
Single Anti-Scalp Wheel: Additional kit for increased deck scalping protection. Two height settings. Can be used in conjunction with the dual anti-scalp kit.
Light Kit: Extend your productivity into the late hours with our optional light kit. Kit contains two high-quality 12-volt lights with a switch that mounts in the instrument panel.
Steering Lever Extension Kit: Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.
Stripe Kit: Helps provide a professional manicured finish to your lawn.
Flex Forks®: Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds.
Rear Hitch Kit: Rear hitch kit available for multiple user applications.
Electric Deck Lift: Raise and lower the deck with the flip of a switch. This electric lift kit consists of simple bolt on hardware and switch installation.

FEATURES

Commercial-Grade Engines: Kawasaki® FX, Kohler® Command Pro® and Vanguard® Engine options
I3M™ Seat: High-back seat with adjustable armrests and 3-inch suspension travel range.
VX Deck: Engineered for extreme vaccum, the all new Hustler VX deck more efficiently.

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

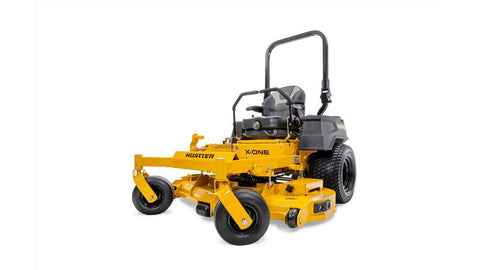

Hustler Turf X-ONE 60" Kawasaki FX850 941856
