Description:

The Raptor XL features premium upgrades to the Raptor X. The XL provides some added comfort with a more premium seat and flex forks for a smoother ride. Also, there is an additional horsepower option with a 23hp Kawasaki FR Engine. More comfort and more power backed by an industry leading 3yr / 300hr warranty.

Key Features

21.5hp, 23hp Kawasaki Engines
42” & 54” decks
7mph mowing speed
3-year / 300 hour limited warranty
FlexForks®
Standard on the XL, these flexing front forks cushion the ride for a more comfortable mowing experience.
Premium Seat
Compared to Raptor X seat, the XL seat features a higher back and added padding
Premium Engine
The V-Twin Kawasaki® engine is the highest rated residential engine available.

Key Specs

Engine Manufacturer: Kawasaki FR691
Engine Horsepower: 23
Transmission: Hydro-Gear ZT-2200
Fuel Capacity: 3 Gallons
Ground Speed (FWD): Up to 7 mph
Cutting Width: 54"
Cutting Height: 1.5" to 4.5"
Front Tire: 11x6
Drive Tire: 18x10.5-8 BigBite
Warranty: 3 Year / 300 Hours Residential

Specifications:

Engine: 23 HP Kawasaki
Transmission: Dual Hydro-Gear ZT-2200
Fuel Capacity: 3 Gal.
Ground Speed: Up to 7mph
Cutting Width: 54"
Cutting Height: 1.5" to 4.5"
Front Tires: 11 X 6
Drive Tires: 18 X 10.5-8 BIGBITE
Width (Chute Up): 58.6"
Parking Brake: Patented Automatic
Deck Depth: 4.5"
Deck Lift: Foot Operated
Deck Spindles: Aluminum with 1" shaft and double lip sealed ball bearings
Deck Engagement: Electric PTO Clutch, Ogura GT1.5
Deck Material: 11 gauge steel
Frame: 1.50" X 3" steel tubing
Front Axle: Fabricated with sealed ball bearings
Seat: Premium bolstered high-back seat with armrests and built-in lumbar support
Cup Holder: Yes
Warranty: 3 Year/ 300 Hour Res. Engine- 3 Year Warranty
Weight: 594 LBS

Width	Weight	Height	Length
54 Inch	594 Pounds	1.5 Inch	0 Inch

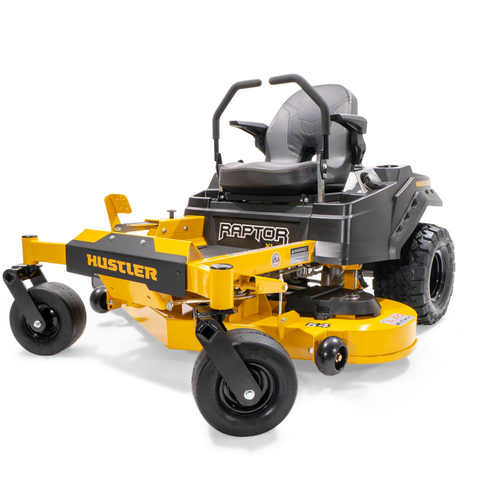

Hustler Raptor XL 54" Kawasaki FR691 (23HP) Zero-Turn Mower 939876
