Description:

The Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty.

Features:

Welded Steel Deck
Welded fabricated steel deck helps add durability and can extend the mower's life.
Wider Stance
Designed to provide ample room adding to the comfort for the operator.
SmoothTrak Steering
Precision control designed to help trim and maneuver easily around obstacles.
Bolstered Seat
Helps provide a comfortable ride with armrests and airflow to the back.
Rubber Floor Mat
Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.
Fabricated Frame
Continuous one-piece 1½ inch by 3 inch welded tubular frame.
Foot-Operated Deck Lift
Easily adjust the deck height between 1.5" - 4.5".
Easy to Service
Flip-up seat pan, removable floor pan, vented pulley covers.
Exclusive BigBite Rear Tires
We worked directly with the tire manufacturer on this design.
Kawasaki® Power
Powered by a V-Twin Kawasaki® Engine.

Specification:

Engine Specs:

Manufacturer: Kawasaki FR691
Horsepower: 23
Displacement: 726cc
Cooling: Air Cooled
Warranty: 3 Year Warranty

Drive System:

Type: Dual Hydrostatic
Transmission: Hydro-Gear ZT-2800
Fuel Capacity: 3 Gallons
Ground Speed (FWD): Up to 7.5 mph
Parking Brake: Patented Automatic

Deck:

Cutting Width: 54"
Cutting Height: 1.5" to 4.5"
Deck Depth: 4.5"
Deck Lift: Foot Operated
Number of Blades: 3
Blade Length: 18.50"
Blade Tip Speed: 18,800
Spindles: Aluminum with 1" shaft and double lip sealed ball bearings
Deck Engagement: Ogura GT1.5
Deck Material: Fabricated 11 Gauge Steel
Spindle Mounts: Reinforced 7 Gauge Steel
Impact Trim Area: 3/8" x 1" Steel Bar

Construction:

Frame: 1.50" x 3" Steel Tubing
Front Axle: Fabricated with Sealed Ball Bearings
Front Caster Wheel: Sealed Ball Bearings
Front Caster Fork: Fabricated 3/8" Steel

General:

Seat: Premium Bolstered High-Back Seat with Armrests and Built-In Lumbar Support
Cup Holder: Yes

Dimensions:

Front Tire: 13x6.5
Drive Tire: 20x12-12 BigBite
Weight: 653 lbs
Height: 43.7"
Length: 71.1"
Width with Chute Up: 58.5"
Tire-To-Tire Width: 48.6"
Acres Per Hour: 3.27

Warranty:

Residential: 3 Year or 300 Hours

Width	Weight	Height	Length
0 Inch	653 Pounds	43.7 Inch	71.1 Inch

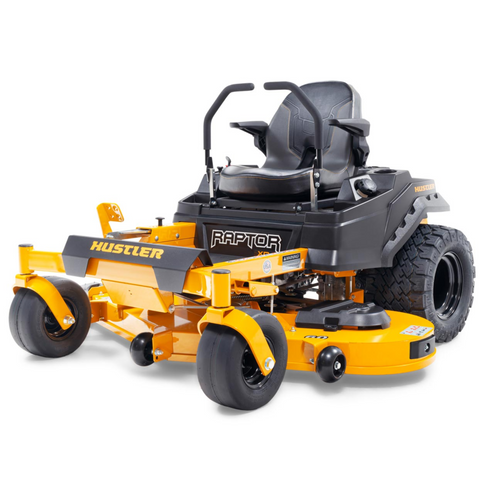

Hustler Raptor XD 54" Kawasaki FR691 (23hp) 939751
