Description:

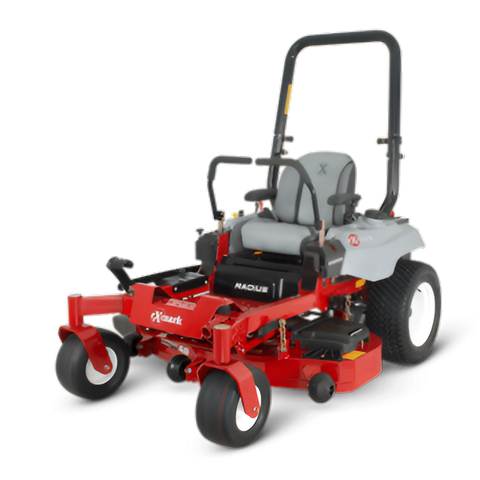

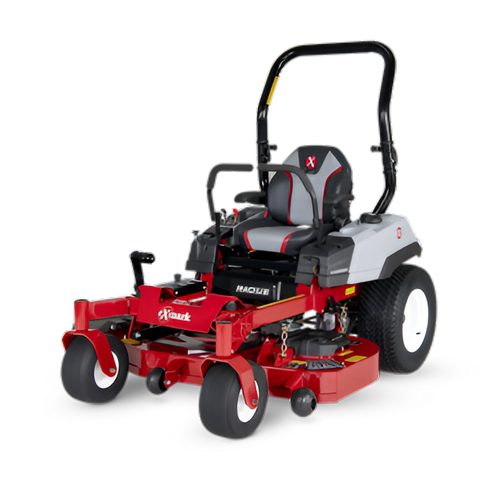

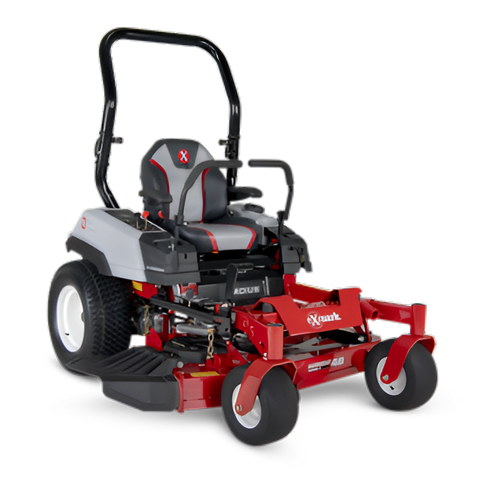

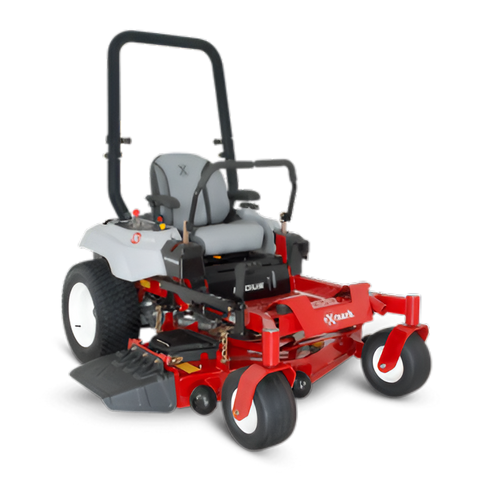

Designed to deliver professional-grade features at an affordable price, the new Exmark Radius E-Series zero-turn mower is a great option for landscape maintenance pros and users seeking professional performance. Available with a choice of 48-, 52- or 60-inch UltraCut Series 3 cutting decks, the Radius E-Series delivers the cut quality you expect, with reduced maintenance and durability you can count on.

Powered by the Exmark twin-cylinder commercial engine, Radius E-Series models deliver superior operator comfort with an isolated footrest, seat suspension options and a new side pod design (2023 models) that places vital controls right at the operator’s fingertips.

Features:

UltraCut Deck Technology:

Exmark’s exclusive UltraCut decks feature maintenance-free, sealed-bearing spindle assemblies for increased durability and reduced downtime. Each deck ensures zero maintenance and superior cutting performance.

Heavy Duty Fabricated Frame:

The Radius models boast a fully welded frame made from 2x3-inch tubes. This design places major components like the engine, hydro drive system, and fuel tank lower in the frame. It results in a lower center of gravity, enhanced traction, stability, and improved handling.

Adjustable Rollover Protection System (ROPS):

The EX23 RZX ROPS is adjustable and designed with round tubes for easy folding up-and-down. It provides flexibility for accessory placement.

Height of Cut Adjustment System:

Exmark’s patented height of cut adjustment system is user-friendly, allowing operators to quickly and accurately select cutting heights from the comfort of the seat.

Large Tires:

Radius E-Series models feature 22-inch smooth rolling drive tires and large 13x6.5-inch caster tires. These tires contribute to smooth operation and maneuverability on various terrains.

Specification:

General

UPC: 193308225333
Starter: Electric
Steering Control: Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Caster Forks: 0.375" thick caster yoke arms

Tires

Front Caster Tires: 13 x 6.5-6, smooth tread, pneumatic. Bushings
Drive Tires: 22 x 9.5-12 Super Turf TL

Brakes

Parking Brake: Lever-actuated pawl brake.

Tractor Frame

Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive.

Electrical

12-volt battery with 15-amp alternator.
Standard Features: Engine hour meter, cup holder, tow hitch, and jack receiver.

Seat

High back seat with foam padded seat cushion, armrests, and integral safety switch.

Engine

Engine Brand: Exmark
Engine Model: LC2P77F
Engine Displacement: 708 cc
Engine Speed: 3,600 rpm
Engine Spec: K5045
Engine Series: V-Twin
Air Filter: Standard Engine Manufacturer's air filter
Fuel System: Carbureted
Fuel Capacity: 7-gallon (26.5-L) single fuel tank with single fill location.
Fuel Type: Gas Carbureted

Transmission

Transmission Speeds: Infinitely Variable
Transmission: Hydrostatic
Drive: Hydro-Drive
Drive Description: Dual Hydro Gear ZT2800, hydrostatic transmission with charge pumps, relief valves, and independent, replaceable filters.

Performance

Speed: Infinitely variable speed selection from 0–8.0 mph (12.9 km/h) forward, 0–5.0 mph (8.0 km/h) reverse.
PTO Engagement: MagStop electromagnetic 125-ft-lb clutch

Additional Features

Fuel Indicator: Translucent Visual
Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Carb Compliant: No
Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS: 2-post foldable ROPS standard with seat belt and latch.

Deck

Deck Style: Floating Deck
Deck Style Description: Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck: 52"
Deck Construction: 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.
Cutting Heights: 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.
Blade Tip Speed: Approximately 18,500 fpm.
Blades: 3 Blades at 18.00" Length

Dimensions

Width: 64.3 in (163.3 cm)
Height: 69.7 in (177.0 cm)
Length: 80.3 in (204.0 cm)

Weight

Curb Weight: 861 lbs

Width	Weight	Height	Length
64.3	861 Pounds	69.7	80.3 Inch

Exmark Radius E-Series 24.5 HP Exmark 708CC w/52 UltraCut Series 3 Deck (RZE708GEM52300)
