Description:

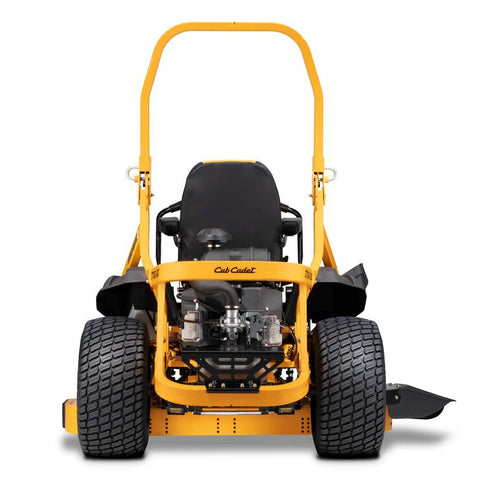

The Cub Cadet® Ultima Series ZTX6 60 is a 60-inch zero-turn lawn mower with a 25.5 HP engine. It features an AeroForce™ Max reinforced fabricated deck, which is designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.

Features:

A high-strength 1.5 in. x 3 in. tubular steel frame is built to provide optimal strength and rigidity while allowing accessibility for easy routine maintenance
Commercial grade 852cc/25.5HP* Kawasaki® FX801 V-Twin OHV engine designed for reliable starting and exceptionally smooth, quiet operation.
Commercial grade dual hydrostatic rear-wheel transmissions for quick up to 9 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
Limited 4-year/800 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell

Specifications:

Engine

Engine Brand: Kawasaki®
Engine Series: FX Series
Engine Model Number: 801V
Engine Displacement: 852cc
Engine Output: 25.5 HP
Starter Type: Electric
Fuel Tank Capacity: 5.5 gal. US (20.82 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.1 qt US (2 L)
Lubrication: Fully pressurized
Charging System: 15 amp regulated
Fuel Gauge: Yes
Governor: Mechanical
Choke: Separate Choke
Air Filter: Single element
Oil Filter: Yes
Fuel Delivery: Carburetor

Battery

Battery: 210 CCA
Battery Type: AGM (Absorbent Glass Mat)
Battery Voltage: 12V

Drive System

Transmission: Hydro-Gear ZT 3400 Charged
Drive Type: Hydrostatic
Forward Speed: 9 MPH / 14.5 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

Deck Cutting Width: 60 in
Deck Material: 10-gauge steel with 2-gauge reinforcement
Deck Engagement (PTO): Electric
Deck Construction: Reinforced Fabricated
Blades: Three
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1" – 4.75"
Anti-Scalping: Three gauge wheels
Deck Positions: 17

Chassis

Frame: 1.5" x 3" tubular steel
Turning Radius: 0°
ROPS: Yes
Rear Tow Hitch: Yes
Corrosion Protection: Yes

Controls

Cruise Control: No
Brakes: Disc
Steering Control: Lap Bars

Comfort

Seat Type: 24" high back
Armrests: Yes
Seat Adjustment: Lever
Front Caster Suspension: Yes

Wheels

Rear Tires: 24" x 12" - 12"
Front Tires: 13" x 6.5" - 6"
Tire Tread: Turf Master / Multi Trac

Additional Features

Series: Ultima Series™ ZTX
Hour Meter: Yes
Mulch Kit: Available separately
Headlights: Dual-LED
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Lap Bar Integrated
Model Number: 47TIAHA8A10

Warranty

Residential Warranty: 4-year / 800 hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime Limited
Commercial Warranty: 4-year / 800 hours

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Cub Cadet ZTX6 60 Ultima Series™ ZTX (47TIAHA8A10)
