Description:

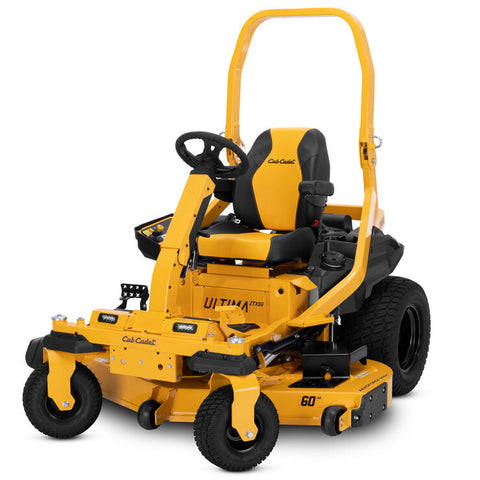

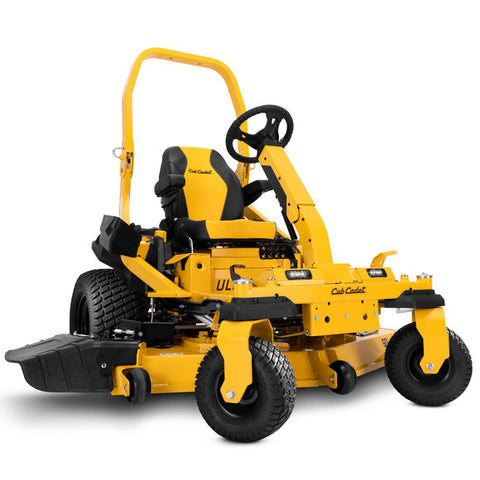

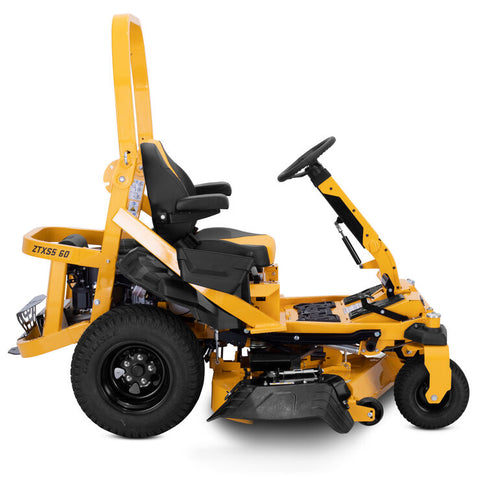

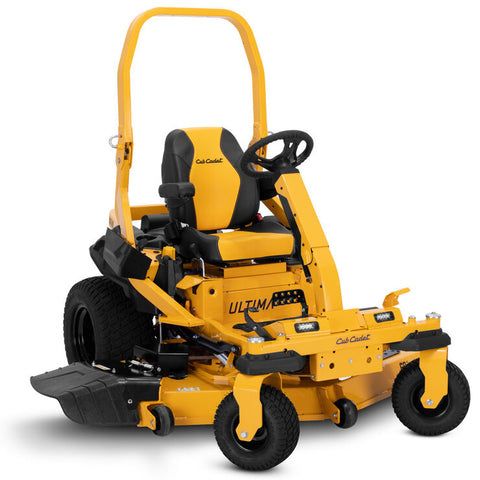

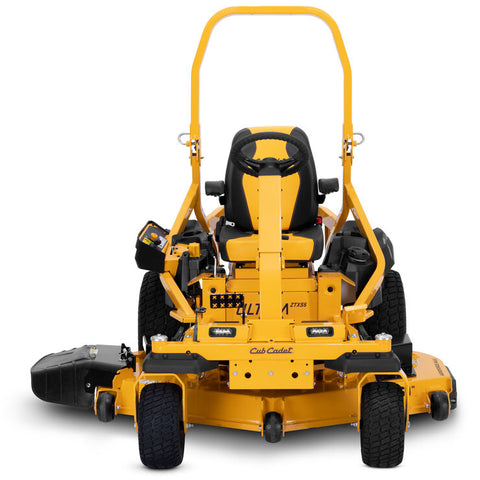

The Cub Cadet® Ultima Series ZTXS5 60 is a 60-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ Max reinforced fabricated deck, which is designed to give you a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. The Synchro-Steer™ technology provides 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees.

Features:

Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
A 24 HP* Kawasaki FS Series V-twin V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear

Specifications:

Engine

Engine Brand: Kawasaki®
Engine Model: FS Series 730R
Displacement: 726cc
Output: 24 HP
Cylinders: Twin
Start Type: Electric (Ignition Key)
Fuel Tank Capacity: 5.5 gal. US (20.82 L)
Oil Capacity: 2.1 qt. US (2 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: Yes
Governor: Mechanical
Choke: Choke-a-matic
Air Filter: Single element
Oil Filter: Yes
Fuel Delivery: Carburetor

Battery

Battery: 210 CCA
Type: AGM (Absorbent Glass Mat)
Voltage: 12V

Drive System

Transmission: Hydro-Gear ZT 3200
Drive Type: Dual Hydrostatic
Forward Speed: 8.5 MPH / 13.7 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

Cutting Width: 60 in.
Deck Material: 10-gauge steel with 2-gauge reinforcement
Deck Construction: Reinforced Fabricated
Deck Engagement (PTO): Electric
Blades: 3
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1" – 4.75"
Deck Height Positions: 17
Anti-Scalping Wheels: Three gauge wheels
Deck Wash Port: No

Chassis

Frame: 1.5" x 3" tubular steel
Turning Radius: 0° (Zero-turn)
ROPS: Yes
Rear Tow Hitch: Yes
Corrosion Protection: Yes

Controls

Steering Control: Steering Wheel
Cruise Control: No
Brakes: Disc
Parking Brake: Foot Controlled

Comfort

Seat Type: 24" high-back
Armrests: Yes
Seat Adjustment: Lever
Front Caster Suspension: No

Wheels

Rear Tires: 23" x 12" – 12"
Front Tires: 13" x 6.5" – 6"
Tire Tread: Turf Master / Multi Trac

Additional Features

Series: Ultima Series™ ZTXS
Hour Meter: Yes
Mulch Kit: Available separately
Headlights: Dual-LED
Cup Holder: Yes
Operator Presence System: Yes
Model Number: 47RKCAB8A10

Warranty

Residential Warranty: 4-year / 800 hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime Limited
Commercial Warranty: 4-year / 800 hours

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Cub Cadet ZTXS5 60 Ultima Series™ ZTXS (47RKCAB8A10)
