Description:

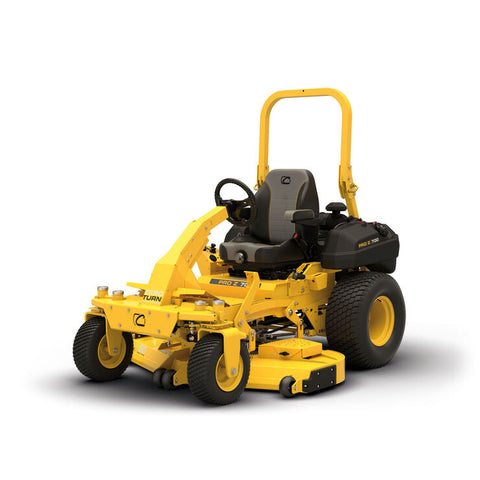

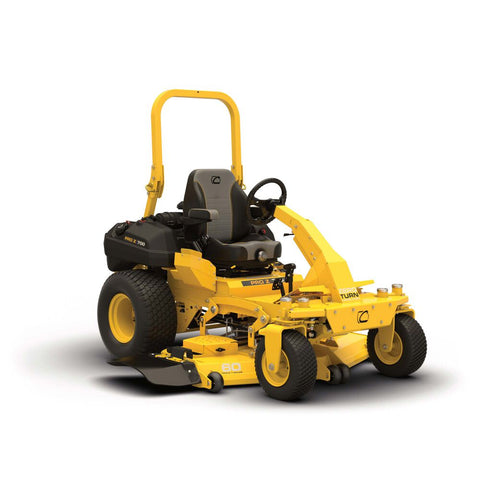

The Cub Cadet® PRO Z 760 S 60-in. 31 HP* Commercial Zero-Turn Lawn Mower With Synchro-Steer™ Technology features a triple 7-gauge fabricated steel cutting deck with top, bottom and side reinforcements. Category exclusive steering wheel control technology is designed to allow you to conquer slopes up to 20 degrees. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime.

Features:

31 HP Kawasaki FX921v (999cc) engine and 12cc Hydro-Gear 4400 transmission
60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty

Specifications:

Engine

Brand: Kawasaki®
Model: FX Series (921V)
Displacement: 999 cc
Output: 31 HP
Fuel Capacity: Twin 7.45 gal tanks (14.9 gal total) with electronic fuel gauge
Lubrication: Full – Spin On
Choke: Separate choke

Drive System

Transmission: 12cc Hydro-Gear 4400
Forward Speed: 12 mph (19 km/h)
Reverse Speed: 6 mph (9.5 km/h)

Cutting Deck

Cutting Width: 60 in
Material: Fabricated 7-gauge (.187") steel shell
Engagement (PTO): Electronic fingertip engagement
Construction: 7-ga top plate, 7-ga bottom reinforcement, ¼" rolled leading edge
Spindles: 8" sealed cast aluminum housing (maintenance-free)
Blades: Triple high-lift Marbain® blades (standard)
Cutting Height: 1" to 5" in ¼" increments
Anti-scalp Wheels: 2 front deck gauge wheels
Deck Lift: Foot pedal with spring assist (16 positions)

Chassis

Frame: Fully welded 3/8" x 5" laser-cut steel with integrated tie-down slots
Front Axle: 2" x 3" solid axle tube with ISO dampening suspension
ROPS: 2" x 2" spring-latch, foldable, 3-position
Rear Bumper: 5/16" thick steel engine guard, pre-drilled for attachments, with integrated rear hitch
Front Yokes: ½" thick steel

Controls

Brakes: Hand-operated
Steering: High-performance steering wheel with electronic power steering & foot-pedal control
Cruise Control: Not available

Comfort

Armrests: Padded
Seat: High-back suspension seat with EVC cushion, ISO-mounted base, lateral suspension
Seat Adjustments: Angle back and lumbar support

Wheels & Tires

Rear Tires: 24" x 12"-12"
Front Tires: 16" x 6.5"-8" Kenda K505
Tread: Turf tread

Additional Features

Hour Meter: Crew Boss
Discharge Chute: High-density, impact-resistant rubber
Cup Holder: Integrated into side pod
Model Number: 53TIHTUVA50

Warranty

Commercial: 3-Year No Hour Limit or 5-Year / 1,200 Hour Warranty

Cub Cadet PRO Z 760S KW
