Description:

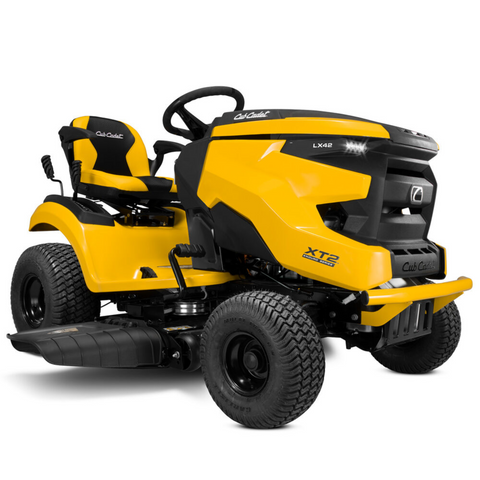

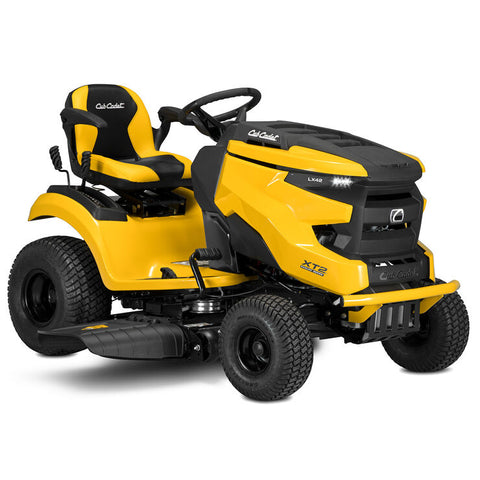

The Cub Cadet® Enduro Series XT2 LX42 is a riding lawn mower with a 42-inch AeroForce™ fabricated deck and a 20 HP engine. It is designed to give you a great cut with few clumps and an even finish. The mower features a hydrostatic transmission for smooth operation. Additionally, it has a comfortable 15-inch high back seat that can be adjusted, ensuring a pleasant mowing experience.

Features:

A strong 20 HP*/725cc twin-cylinder Kohler® HD engine is designed to deliver reliable power to tackle your yard.
42-in. strong AeroForce™ fabricated deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness.
Compact AGM battery is designed to deliver a premium experience with a long lifespan, low maintenance and excellent starting performance for reliable starting season to season.
A steel bumper helps provide excellent protection for tough tasks.
Adjustable cut and sew high back 15-in. seat with armrests and 10-degree incline and slide slope helps provides comfort.

Specification:

Engine

Brand: Kohler®
Model: 7000 Series HD
Model Number: KT720
Displacement: 747cc
Output: 20 HP
Cylinders: Twin
Start Type: Electric (Ignition Key)
Oil Capacity: 2.0 qt. US (1.89 L)
Lubrication: Fully pressurized
Governor: Mechanical
Choke: Separate Choke
Air Filter: Single element
Oil Filter: Yes
Fuel Delivery: Carburetor
Fuel Tank Capacity: 3.0 gal. US (11.36 L)
Fuel Gauge: No
Charging System: 12 amp regulated

Battery

Type: AGM (Absorbent Glass Mat)
Voltage: 12V
CCA: 210

Drive System

Transmission: Tuff Torq® K46
Drive Type: Hydrostatic
Control: Foot Pedal
Forward Speed: 5.5 MPH / 8.6 km/h
Reverse Speed: 3 MPH / 4.8 km/h
Rear Axle: 1"
Transmission Housing: Cast aluminum
Rear Differential Lock: No

Cutting Deck

Cutting Width: 42 in
Deck Type: Fabricated
Material: 11-gauge steel
Deck Engagement: Manual PTO
Blade(s): 2
Deck Lift: Manual
Deck Wash Port: Yes
Cutting Height Range: 1" - 4"
Deck Positions: 12
Anti-Scalping Wheels: 2 gauge wheels

Chassis & Frame

Frame: Robotically welded
Front Pivot Bar: Cast iron
Turning Radius: 16"
Bumper: Steel Tube
Tow Hitch: Yes
Corrosion Protection: Yes

Controls & Comfort

Cruise Control: Yes
Brakes: Disc
Seat Type: 15" High-back
Armrests: Yes
Seat Adjustment: Lever
Floor Mats: Rubber

Wheels & Tires

Bearing Type: Ball Bearing
Rear Tires: 20" x 8" -8"
Front Tires: 15" x 6" -6"
Tread Type: Multi Trac

Lighting & Extras

Headlights: Dual LED
Cup Holder: Yes
Hour Meter: Yes
Operator Presence System: Yes
Mulch Kit: Available separately

Model & Warranty

Model Number: 13APA1TEA10
Series: XT2® Enduro Series™

Warranty

Residential Warranty: 3-year unlimited hours
Frame Warranty: 5-year unlimited hours
Front Axle Warranty: 5-year unlimited hours
Deck Shell Warranty: Lifetime Limited
Commercial Warranty: Not included

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Cub Cadet XT2 LX42 Enduro Series (13APA1TEA10)
