Description:

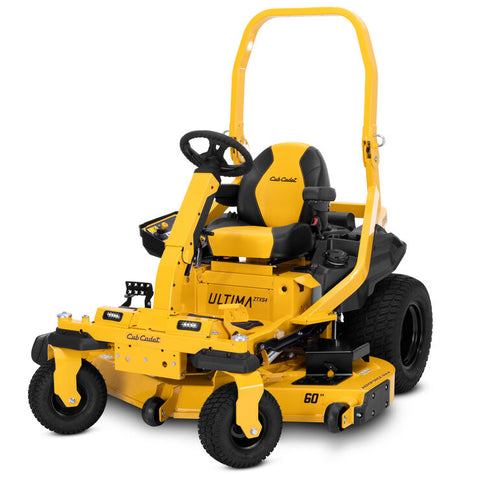

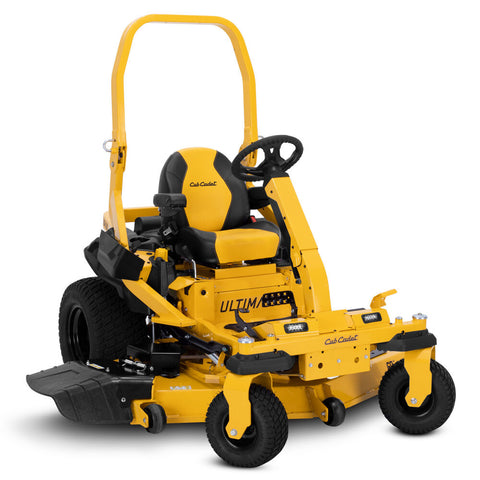

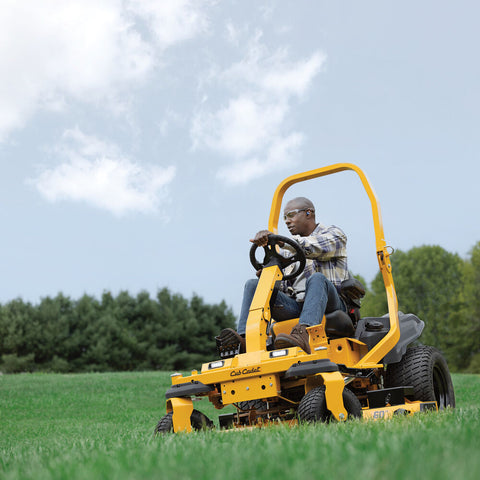

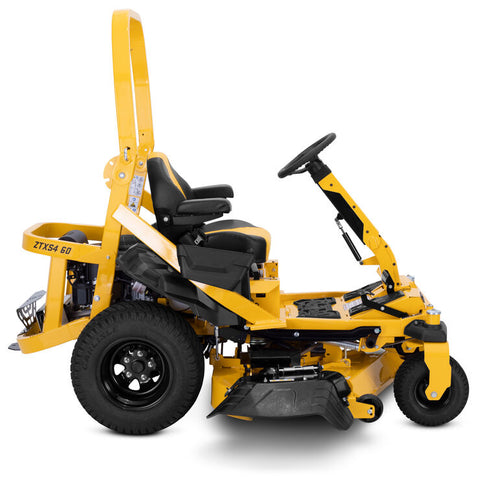

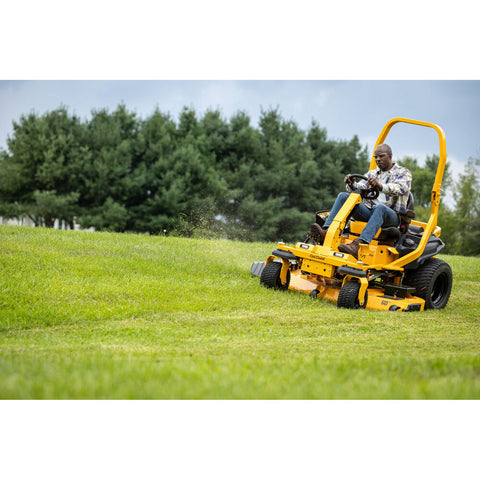

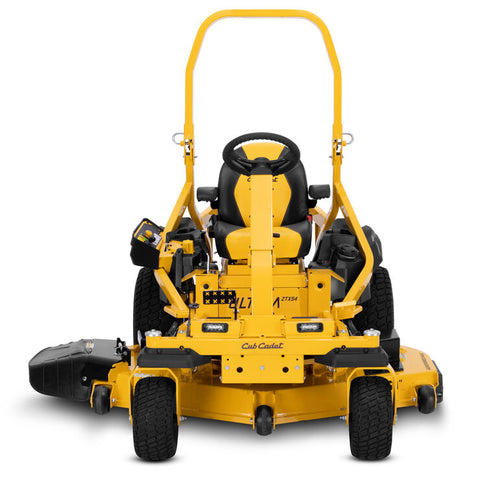

The Cub Cadet® Ultima Series ZTXS4 60 is a 60-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. The Synchro-Steer™ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees.

Features:

Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
A 26 HP* Kohler KT-Pro 7000 Series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds, that quickly leaves your lawn with a professional-quality finish
A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear

Specifications:

Engine

Engine Brand: Kohler®
Engine Series: Pro 7000 Series
Engine Model Number: KT745
Displacement: 747cc
Power Output: 26 HP
Cylinders: Twin
Start Type: Electric (Ignition Key)
Fuel Delivery: Carburetor
Choke: Choke-a-matic
Fuel Tank Capacity: 5.5 gal. US (20.82 L)
Oil Capacity: 2.0 qt. US (1.89 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Governor: Mechanical
Air Filter: Dual element
Oil Filter: Yes
Fuel Gauge: Yes

Battery

Battery: 210 CCA
Type: AGM (Absorbent Glass Mat)
Voltage: 12V

Drive System

Transmission: Hydro-Gear ZT 3100
Drive Type: Dual Hydrostatic
Forward Speed: 8 MPH / 12.9 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

Cutting Width: 60 in.
Deck Material: 10-gauge steel with 2-gauge reinforcement
Deck Construction: Reinforced Fabricated
Deck Engagement (PTO): Electric
Blade Count: Three
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1" – 4.75"
Deck Height Positions: 17
Anti-Scalping Wheels: 3 gauge wheels
Deck Wash Port: No

Chassis

Frame: 1.5" x 3" tubular steel
Turning Radius: 0° (Zero-turn)
ROPS: Yes
Rear Tow Hitch: Yes
Corrosion Protection: Yes

Controls

Steering Control: Steering Wheel
Cruise Control: No
Brakes: Disc
Parking Brake: Foot Controlled

Comfort

Seat Type: 20" high-back
Armrests: Yes
Seat Adjustment: Lever
Front Caster Suspension: No

Wheels

Rear Tires: 22" x 12" – 12"
Front Tires: 13" x 6.5" – 6"
Tire Tread: Turf Master / Multi Trac

Additional Features

Series: Ultima Series™ ZTXS
Hour Meter: Yes
Mulch Kit: Available separately
Headlights: Dual-LED
Cup Holder: Yes
Operator Presence System: Yes
Model Number: 47TSCAB8A10

Warranty

Residential Warranty: 4-Year / 800 hours
Commercial Warranty: 4-Year / 800 hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime Limited

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Cub Cadet ZTXS4 60 Ultima Series™ ZTXS (47TSCAB8A10)
