Description:

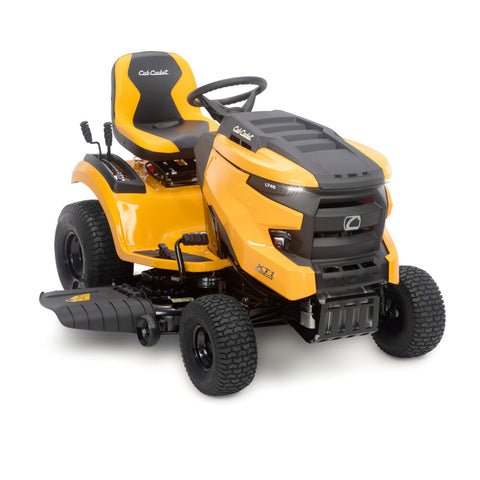

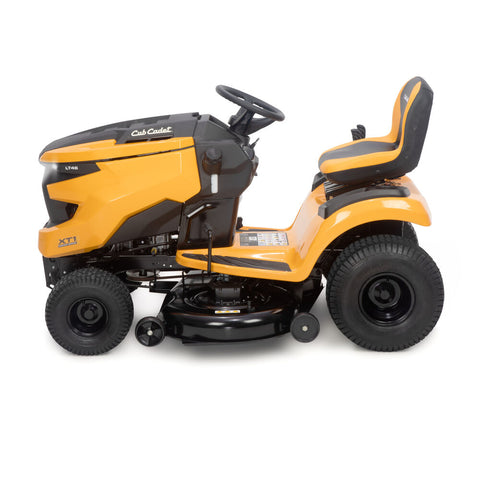

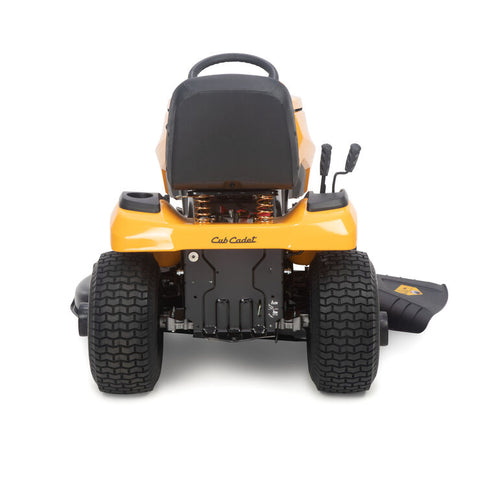

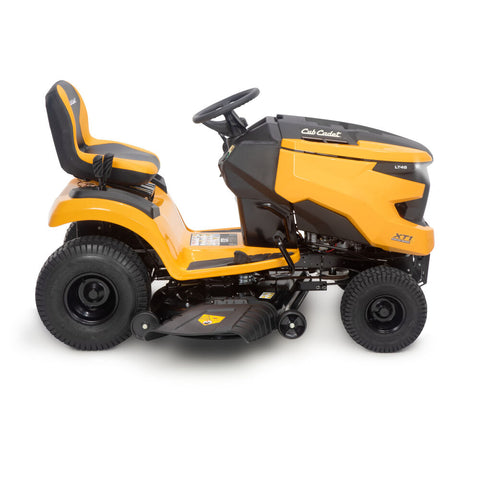

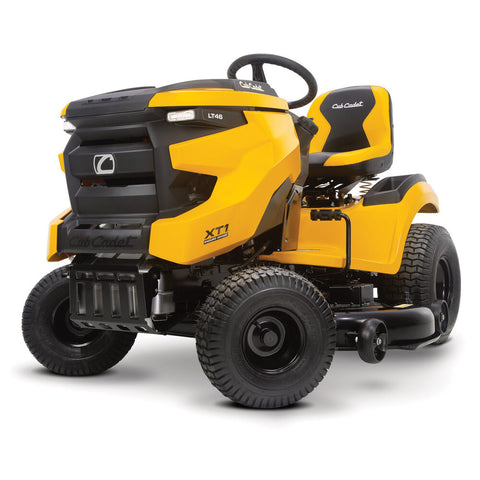

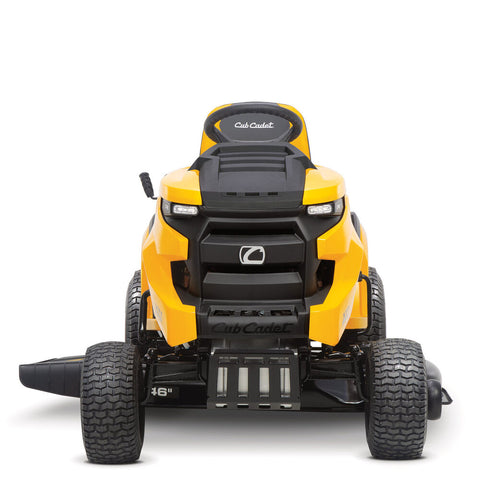

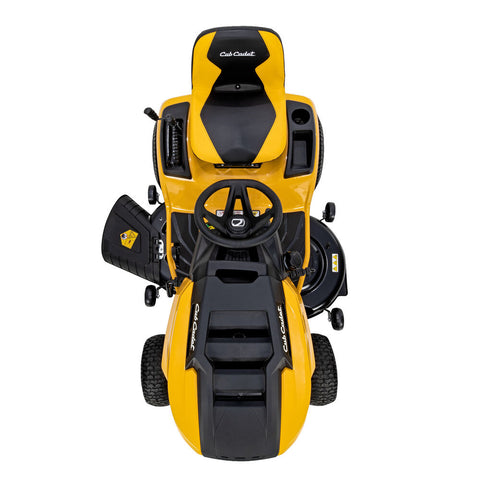

The Cub Cadet® Enduro Series XT1 LT46 46-in. 22 HP* Riding Lawn Mower features a 46-in., stamped deck. Features a hydrostatic transmission that helps provide a smooth operation. An adjustable cut and sew high back 15-in. seat designed to provide comfort for an excellent mowing experience.

Features:

A 22 HP/725cc twin-cylinder Kohler® engine is designed to deliver reliable power to tackle your yard.
46-in. stamped deck built with strong materials and an exceptional belt design while delivering a premium cut.
Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
Adjustable cut and sew high back 15-in. seat with a 10-degree incline and slide slope designed to provide comfort for an excellent mowing experience.
Compact AGM battery is designed to deliver a premium experience with a long lifespan, low maintenance and excellent starting performance for reliable starting season to season.
Lawn Tractor

Specification:

Engine

Engine Brand: Kohler®
Engine Model: 7000 Series
Engine Model Number: KT725
Engine Displacement: 725cc
Engine Output: 22HP
Starter Type: Electric
Fuel Tank Capacity: 3.0 gal. US (11.36 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.0 qts. US (1.89 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: No
Governor: Mechanical
Choke: Separate Choke
Air Filter: Dual element
Oil Filter: Yes
Fuel Delivery: Carburetor
Battery: 210 CCA AGM (Absorbent Glass Mat)
Battery Voltage: 12V

Drive System

Transmission: Tuff Torq® TL-200
Forward Speed: 5.5 MPH / 8.6 km/h
Reverse Speed: 3 MPH / 4.8 km/h
Rear Axle: 3/4"
Drive System: Hydrostatic
Transmission Control: Foot Pedal
Transmission Housing: Aluminum
Rear Differential Lock: No

Cutting Deck

Deck Cutting Width: 46 in.
Deck Wash: Yes
Deck Material: 12-gauge steel
Deck Engagement (PTO): Manual
Deck Construction: Stamped
Blade(s): 2
Deck Lift: Manual
Cutting Height Range: 1" - 4"
Anti-Scalping: 4 gauge wheels
Deck Positions: 12

Chassis

Frame: Robotically welded
Turning Radius: 16"
Bumper: No
Rear Tow Hitch: Yes
Corrosion Protection: Yes
Front Pivot Bar: Cast iron

Controls

Cruise Control: Yes
Brakes: Disc

Comfort

Seat Type: 15" high-back
Armrests: No
Seat Adjustment: Lever
Floor Mats: Rubber

Wheels

Bearing Type: Poly Bushing
Rear Tires: 20"x 8"-8"
Front Tires: 15"x 6"-6"
Tire Tread: Turf Saver

Additional Specifications

Series: XT1® Enduro Series™
Hour Meter: Available Separately
Mulch Kit: Available separately
Headlight(s): Dual-LED
Cup Holder: Yes
Operator Presence System: Yes
Model Number: 13APA9TTA10

Warranty

Residential Warranty: 3-year unlimited hours
Frame Warranty: 5-year unlimited hours
Front Axle Warranty: 5-year unlimited hours
Deck Shell Warranty: 3-year unlimited hours
Commercial Warranty: No

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Cub Cadet XT1 LT 46 13APA9TTA10 ENDURO SERIES
